When the C: drive is getting full in Windows Server 2019, you can increase the C drive space without recreating partitions or restoring system deployments from backup. This approach completely eliminates the need for tedious, time-consuming restoration tasks. Fortunately, existing disk partitions can be safely resized without data loss. To alter volume allocations, you can utilize the native Disk Management tool if you are able to delete the adjacent partition. However, the most efficient method is using professional partition software to keep your disk structure fully intact. This article explains how to extend C drive in Windows Server 2019 without losing data.
Increase C drive space in Server 2019 with native tool
The Windows Server 2019 native Disk Management utility features built-in Shrink Volume and Extend Volume components to help administrators change partition size parameters. However, this native utility cannot extend the system drive by simply shrinking alternative data blocks. This limitation occurs because the extension function requires unallocated space to be located directly adjacent to the right side of the target partition. When you shrink the D drive or any alternative volume, the resulting unallocated space is non-contiguous to the primary partition, causing the Extend Volume option to be greyed out.
To safely extend C drive in Windows Server 2019 environments without third-party software, you must entirely delete the contiguous right partition, such as the D or E drive. Additionally, this adjacent partition must be structured as a primary volume. Conversely, utilizing professional partition software allows you to generate unallocated space directly on the left side when shrinking data volumes, enabling you to seamlessly update partition setups without wiping separate data blocks.
How to extend C: drive in Server 2019 with Disk Management:
- Migrate all files stored on the contiguous partition D (or E drive on some servers) to an alternative storage location.
- Press the Windows key + X on your keyboard and select Disk Management from the configuration list.
- Right-click the D drive and select "Delete Volume" to convert its file system layout into unallocated block space.
- Right-click the C drive, select "Extend Volume," and click Next through the sequential wizard steps until you hit Finish.
Important considerations when updating disk configurations via Disk Management:
- The unallocated sector block created by deleting a volume must reside directly next to the C drive boundary.
- If the contiguous partition D is configured as a logical drive, its capacity will convert into "Free Space" rather than unallocated space, keeping the option disabled.
- The procedure is not entirely risk-free; use extreme caution when primary and logical partitions coexist on the same disk layout.
When modifying storage structures, all parameters of the underlying drive, boundary blocks, and file tracking systems must be accurately rewritten. Software conflicts or sudden hardware failures, such as power disruptions, can cause partition table mismatches, risking system corruption. Therefore, it is highly recommended to perform a full image backup or clone your system configuration before executing changes via certified partition utilities.
Outperforming conventional disk maintenance applications, NIUBI Partition Editor offers robust data protection features and advanced file processing architectures:
- Virtual Mode – All planned operations are safely staged as pending tasks. Real disk sectors remain unchanged until you click "Apply" to execute adjustments.
- Cancel-at-will – If an incorrect modification is queued, you can safely abort ongoing operations without triggering partition errors.
- 1 Second Rollback – If a hardware exception or known software error is detected during partition reallocation, the utility automatically snaps the server back to its original state instantly.
- Hot Clone – Clone the system disk or data partitions without rebooting, enabling immediate recovery options from a secondary drive if the primary disk encounters a failure.
- Equipped with an advanced file-moving algorithm, this utility is 30% to 300% faster when shrinking, relocating, or copying partition boundaries.
Extend C drive in Windows Server 2019 with safe software
On most production servers, there is abundant unused space available inside separate volumes on the same physical disk. You can easily shrink these large partitions to generate unallocated block space. By choosing to add this unallocated space to C drive configurations, you can efficiently handle server capacity alerts. This workflow ensures that the host operating system, configuration arrays, and applications remain fully operational. To execute this adjustment, you simply need to manipulate the visual disk allocation map.

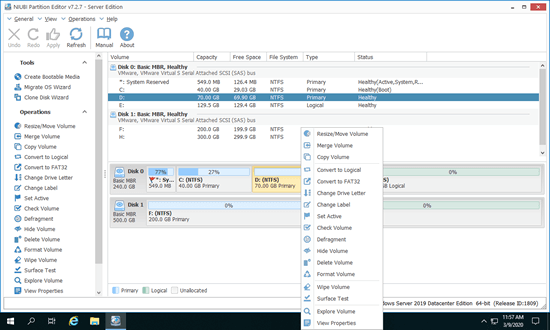

Download NIUBI Partition Editor to view the central management layout displaying your server's current partition topology. Eligible disk actions are dynamically mapped on the left side and context menus, while conflicting commands are automatically filtered out to ensure workspace clarity.
Steps to change partition layouts without data loss:
- Right-click the contiguous volume D (or alternative storage drives) and select "Resize/Move Volume." In the interactive panel, drag the left border toward the right side to shrink the partition and generate unallocated space along its left boundary.
- Right-click the C drive, select "Resize/Move Volume" again, and drag its right border toward the right side to absorb the newly reclaimed space.
- Click the "Apply" option in the top-left area to authorize the staged changes.
Watch the detailed demonstration video to see how to naturally enlarge C drive spaces:
- If your local system layout maps the contiguous drive as E, simply substitute the references in the steps outlined above.
- When adjusting non-adjacent partitions, add an intermediate step to move unallocated space over to the left edge of the contiguous drive before expanding the system volume, as illustrated in the video guide.
- The utility operates strictly within Virtual Mode initially; partition table sectors are safe from modification until you confirm the choices. If an error occurs, simply select "Undo."
- Staged operations labeled with the
icon run directly within the live Windows environment, while entries requiring the
symbol require a server restart to execute. - If the system drive operates on a hardware RAID array, the process to resize/extend RAID partition sectors follows the identical workflow. Do not break active arrays or modify the physical storage controller settings.
How to safely expand system partitions using secondary drives
The total capacity of an individual physical drive is structurally constant. While you can easily modify internal boundary setups, you cannot expand a physical disk's absolute limit. If your storage disk consists entirely of the C drive, or if every existing volume has hit maximum capacity, software tools cannot harvest free space from a separate physical disk. Under a single-partition drive layout, you must clone disk to a larger one to easily map the extra storage space. Follow the demonstration video to migrate and increase your available server capacity:
If separate partitions exist but lack available space, an alternative workflow involves moving a data partition to a separate drive entirely, deleting its legacy footprint, and reallocating that freed block. Learn how to move partition in Server 2019 configurations.
Expand C drive in Server 2019 running in VMware/Hyper-V/Virtualbox
When running Windows Server 2019 inside a virtualized hypervisor architecture (VMware, Hyper-V, or VirtualBox), the process is identical if there is unallocated space inside the virtual drive container. Simply deploy the partition configuration software within the guest operating system and apply the primary methods explained above.
If the virtual storage drive container itself has completely run out of space, you can expand its maximum provisioned boundary directly through the hypervisor management console. Once expanded, the newly added storage area will be displayed as an unallocated partition block positioned at the end of the virtual drive.
- How to expand virtual disk size in VMware
- How to expand virtual disk size in Hyper-V
- How to move and add unallocated space to C drive
In Summary
To safely expand your system drive capacity in Windows Server 2019, first audit your active partition configuration map and follow the corresponding matching guide above. NIUBI Partition Editor ensures this system adjustment executes smoothly and securely. Beyond maintaining volume boundaries in Server 2019, 2022, and 2025, the application simplifies daily administrative tasks across legacy environments from Server 2003 through 2016.
